Lab: Cloud Scanning
Brief Intro
In this lab, you will scan a large range of IP addresses simulating a cloud environment to identify a previously unknown Falsimentis server using Masscan, TLS-Scan, JQ, and EyeWitness.
Requirements for This Lab
In this lab, you will use your Slingshot Linux VM. Make sure the VM is running before continuing with this lab exercise.
Try It Yourself
Run gomasscannet to setup the target environment. Scan the 10.200.0.0/16 network using Masscan for servers listening on TCP/443, then use TLS-Scan to enumerate the listening servers. Use JQ to extract server identity information from the TLS-Scan output. Use EyeWitness to build a report of the active host websites, identifying the Falsimentis cloud server.
Walkthrough
Overview
In this lab, you will use your Slingshot Linux VM to scan a simulated cloud environment using Masscan. After identifying several unique hosts in the target environment, you will enumerate the TLS servers using TLS-Scan, and attribute the system ownership using certificate data. Finally you will perform an EyeWitness scan to generate a report of the hosts, then identify the Falsimentis cloud VM target using the results of the scans.
Open a Terminal
From the Slingshot Linux VM, open a terminal.
Start the Simulated Cloud Environment
From the Slingshot Linux terminal, run gomasscannet to launch the simulated cloud environment, as shown here. Note that some of the values shown in the example below will be different for your system.
sec504@slingshot:~$ gomasscannet Starting Docker service ..... Done. 3656882e60630e29fc873c496b7e3503fb5b0df17b54c617b68e8e9d5f87a77a 3ecfd495fb81e317f370aa52bb728942e24c272c569f9c7dfc4867decd80a9a6 Kernel IP routing table Destination Gateway Genmask Flags Metric Ref Use Iface 0.0.0.0 192.168.171.1 0.0.0.0 UG 0 0 0 eth0 10.200.0.0 192.168.200.10 255.255.0.0 UG 0 0 0 br-49bbe3a7dc68 172.17.0.0 0.0.0.0 255.255.0.0 U 0 0 0 docker0 192.168.171.0 0.0.0.0 255.255.255.0 U 0 0 0 eth0 192.168.200.0 0.0.0.0 255.255.255.0 U 0 0 0 br-49bbe3a7dc68
In this output we see the remote network representing the cloud environment (10.200.0.0/16) is accessible through the router (gateway) at 192.168.200.10.
Examine Masscan Usage
Run masscan with no arguments to launch the tool and to display basic usage information, as shown here.
sec504@slingshot:~$ masscan usage: masscan -p80,8000-8100 10.0.0.0/8 --rate=10000 scan some web ports on 10.x.x.x at 10kpps masscan --nmap list those options that are compatible with nmap masscan -p80 10.0.0.0/8 --banners -oBsave results of scan in binary format to masscan --open --banners --readscan -oX read binary scan results in and save them as xml in
Masscan accepts arguments that are similar to Nmap, including -p (designate ports to scan), -iL iplist.txt (obtain a list of target IP addresses from a file), or a range of IP addresses using CIDR or hyphenated ranges. One important additional argument for Masscan is --rate, where the attacker specifies the number of packets per second that Masscan will transmit.
For Masscan to be effective, the rate specified must not exceed host or network capacity, either local to the attacker or in any hop between the attacker and the target network environment. To improve performance, an attacker will use a cloud system that matches the environment of the target to best leverage single-cloud performance.
Enumerate Cloud Targets
Run Masscan to enumerate the cloud targets, identifying any hosts listening on TCP/443 (HTTPS), as shown here.
sec504@slingshot:~$ masscan -p 443 --rate 10000 -oL simcloud.txt 10.200.0.0/16 Starting masscan 1.3.2 (http://bit.ly/14GZzcT) at 2021-05-11 10:20:28 GMT Initiating SYN Stealth Scan Scanning 65536 hosts [1 port/host] ...
The command line can be broken down into the following components:
-p 443: Identify systems listening on TCP/443 using a half/open (SYN) scan technique--rate 10000: Send 10,000 packets per second-oL simcloud.txt: Save the results in list format (one entry per line) in the specified file name10.200.0.0/16: Scan the specified list of IP addresses (65535 hosts) using CIDR notation
NOTE: At the end of the scan, Masscan should report the discovery of 14 hosts. This is not always predictable, since Masscan may send packets faster than your host system can accommodate, even in the simulated cloud environment. If your scan reports fewer than 14 identified hosts, re-run the scan. You can also experiment with different rates, either increasing or decreasing the rate to experiment with Masscan performance.
Examine Scan Results
Display the contents of the scan result file using cat, as shown below.
sec504@slingshot:~$ cat simcloud.txt #masscan open tcp 443 10.200.227.71 1620729347 open tcp 443 10.200.0.3 1620729349 open tcp 443 10.200.84.164 1620729350 open tcp 443 10.200.23.203 1620729350 open tcp 443 10.200.11.125 1620729350 open tcp 443 10.200.89.164 1620729351 open tcp 443 10.200.13.31 1620729351 open tcp 443 10.200.30.42 1620729351 open tcp 443 10.200.125.68 1620729352 open tcp 443 10.200.74.2 1620729352 open tcp 443 10.200.140.181 1620729352 open tcp 443 10.200.248.218 1620729353 open tcp 443 10.200.137.13 1620729354 open tcp 443 10.200.1.10 1620729355 # end
The Masscan results in list format (-oL) are mostly self-explanatory except for the last column. The last column represents the epoch timestamp when Masscan identified the open port. The epoch timestamp can be converted to a human-friendly timestamp using the date utility (date -d '@1620729347') if desired.
With this information we can represent the new targets visually, as shown here.
Build a Target IP List
The Masscan results identify the systems listening on TCP/443, but for compatibility with other tools we need to create a file that includes only the listening IP addresses, one per line. Use the following Awk example to extract this list from the Masscan results.
sec504@slingshot:~$ awk '/open/ {print $4}' simcloud.txt > simcloud-targets.txt
sec504@slingshot:~$ cat simcloud-targets.txt
10.200.227.71
10.200.0.3
10.200.84.164
10.200.23.203
10.200.11.125
10.200.89.164
10.200.13.31
10.200.30.42
10.200.125.68
10.200.74.2
10.200.140.181
10.200.248.218
10.200.137.13
10.200.1.10
The Awk command line can be broken down into the following components:
awk ': Runawkand start a new program within single quotes/open/: Only process lines that include the stringopen(similar togrep){: Start the action portion of the Awk programprint $4: Print the 4th tokenized column (the Masscan-reported IP address)}: End the action portion of the Awk program': End the Awk program with the closing single quote> simcloud-targets.txt: Redirect the output of the Awk program to the specified file name
Once you have a list of IP addresses, we can use other tools to interrogate these hosts to perform attribution assessment of the targets.
Collect TLS Information
Next we'll use TLS-Scan to conduct target attribution against the identified list of hosts. Run the tls-scan command as shown below.
sec504@slingshot:~$ tls-scan --port=443 --cacert=/opt/tls-scan/ca-bundle.crt -o simcloud-tlsinfo.json < simcloud-targets.txt
elapsed-time: 0 secs | status: 1/1 | tls-handshake: 1 | target: 10.200.227.71
elapsed-time: 0 secs | status: 2/2 | tls-handshake: 2 | target: 10.200.0.3
elapsed-time: 0 secs | status: 3/3 | tls-handshake: 3 | target: 10.200.84.164
elapsed-time: 0 secs | status: 4/4 | tls-handshake: 4 | target: 10.200.23.203
elapsed-time: 0 secs | status: 5/5 | tls-handshake: 5 | target: 10.200.11.125
elapsed-time: 0 secs | status: 6/6 | tls-handshake: 6 | target: 10.200.89.164
elapsed-time: 0 secs | status: 7/7 | tls-handshake: 7 | target: 10.200.13.31
elapsed-time: 0 secs | status: 8/8 | tls-handshake: 8 | target: 10.200.30.42
elapsed-time: 0 secs | status: 9/9 | tls-handshake: 9 | target: 10.200.125.68
elapsed-time: 0 secs | status: 10/10 | tls-handshake: 10 | target: 10.200.74.2
elapsed-time: 0 secs | status: 11/11 | tls-handshake: 11 | target: 10.200.140.18
elapsed-time: 0 secs | status: 12/12 | tls-handshake: 12 | target: 10.200.248.21
elapsed-time: 0 secs | status: 13/13 | tls-handshake: 13 | target: 10.200.137.13
elapsed-time: 0 secs | status: 14/14 | tls-handshake: 14 | target: 10.200.1.10
pid: 19946 | ciphers: (0) |host-count: 14 |network-error: 0 |dns-errcount: 0 |remote-close-error: 0 |unknown-error: 0 |connect-error: 0 |timeout-error: 0 |tls-handshake: 14 |gross-tls-handshake: 14 |
elapsed-time: 0.95191 secs
The TLS-Scan command line can be broken down into the following components:
--port=443: Collect TLS information using TCP port 443--cacert=/opt/tls-scan/ca-bundle.crt: Specifies the path to the root CA certificate bundle used to verify certificates-o simcloud-tlsinfo.json: Save the scan results to the specified output file name< simcloud-targets.txt: Get the list of target IP addresses to assess using shell redirection (read the contents of thesimcloud-targets.txtfile)
TLS-Scan will quickly connect to each of the 14 target hosts and collect certificate information, saving the collected information in the specified JSON file. The collected certificate information will often reveal the cloud system owner, allowing an attacker to perform attribution analysis on the target.
Conduct Target Attribution
The TLS-Scan JSON file includes several pieces of information that can be used for attribution: certificate subject, common name, subject alt name, and others. We can use JQ to process the JSON file to extract this information. Run the JQ command shown below to extract IP address and subject common name information from the certificate chain for each identified TLS server, as shown below.
sec504@slingshot:~$ jq '.ip + " " + .certificateChain[].subjectCN' < simcloud-tlsinfo.json "10.200.227.71 *.genusight.com" "10.200.0.3 *.sunsetisp.com" "10.200.84.164 *.genusight.com" ...
The JQ command line can be broken down into the following components:
'.ip + " " + .certificateChain[].subjectCN': The JQ program, selecting the.ipand.certificateChain[].subjectCNfields for each record in the JSON file, concatenated with spaces< simcloud-tlsinfo.json: Get the JSON data using shell redirection
Question: What is the IP address and host name of the Falsimentis system?
Click to See Answer
The output of the JQ command will reveal IP address and certificate subject common name information for several hosts. You can inspect the results manually, or use `grep` to identify any string returned that identifies the falsimentis.com domain, as shown here.sec504@slingshot:~$ jq '.ip + " " + .certificateChain[].subjectCN' < simcloud-tlsinfo.json | grep falsimentis "10.200.74.2 downloads.falsimentis.com"
Answer: The IP address and host name of the Falsimentis system are 10.200.74.2 and downloads.falsimentis.com.
Create an EyeWitness Report
Although not required for cloud scanning, EyeWitness is a useful tool to create a visual report of several target systems. Unlike Masscan and Nmap, EyeWitness focused on visually representing the target system by taking a screenshot of the website or other graphical interfaces (RDP, VNC), creating an HTML report of the scan results.
From the Slingshot Linux command line, create an EyeWitness report for all of the cloud systems identified in the Masscan results, as shown here.
sec504@slingshot:~$ /opt/eyewitness/Python/EyeWitness.py --web -f simcloud-targets.txt --prepend-https ################################################################################ # EyeWitness # ################################################################################ # FortyNorth Security - https://www.fortynorthsecurity.com # ################################################################################ Starting Web Requests (28 Hosts) Attempting to screenshot http://10.200.227.71 Attempting to screenshot https://10.200.227.71 Attempting to screenshot http://10.200.0.3 Attempting to screenshot https://10.200.0.3 ... Finished in 44.29612350463867 seconds [*] Done! Report written in the /home/sec504/05112021_165523 folder! Would you like to open the report now? [Y/n] y

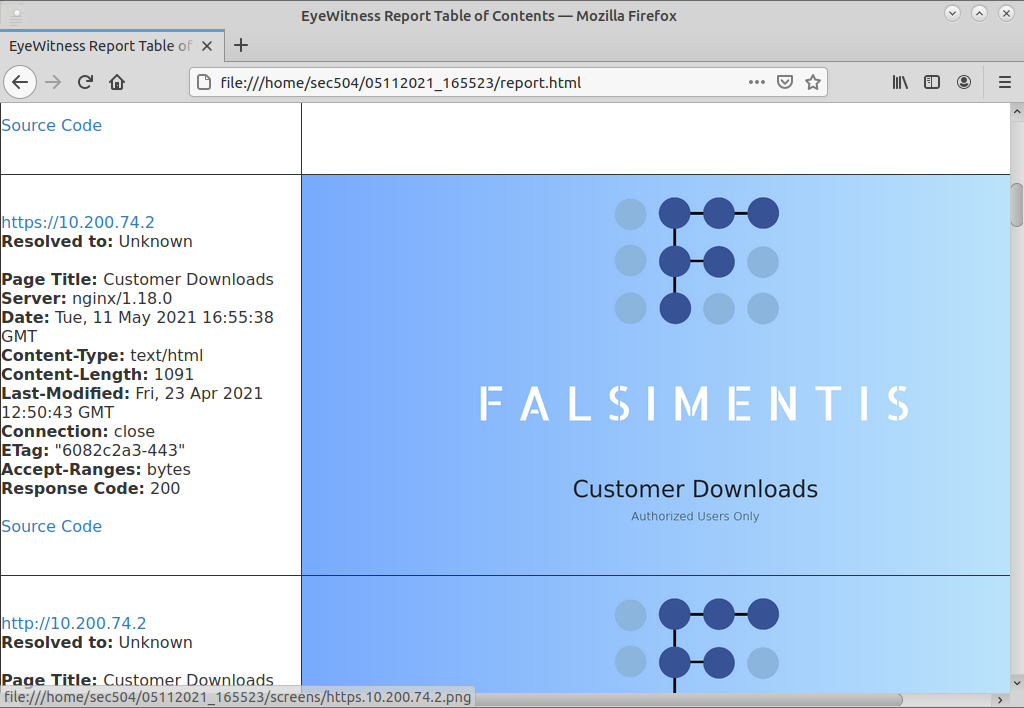

After opening the EyeWitness report in Firefox, scroll to find the Falsimentis target system, as shown here. Note that the server may not be on the first page of scan results since the servers are enumerated in the Masscan target list file order.
Cleanup
Terminate the simulated cloud network by running stopmasscannet, as shown here.
sec504@slingshot:~$ stopmasscannet Stopping Docker containers for masscan lab masscantarget dockerrouter Done
Why This Lab Is Important
To many, cloud assets can seem anonymous: just another server deployed in the cloud. Especially when the systems are not actively in use (perhaps for staging or development purposes), or have not been allowed public DNS entries, a cloud server can be lost in a sea of other systems.
In this lab, we see how an attacker can scan large numbers of entities using Masscan. While we scanned only 65,535 hosts in this exercise, Masscan can quickly scan millions of systems to identify a list of targets listening on designated ports. While these scan results don't provide any ownership attribution for the identified targets, TLS-Scan can quickly extract certificate information which can reveal the target server owner quickly.
Attackers can use these techniques to scan and enumerate assets hosted by various cloud providers, disclosing servers that belong to a target organization. After identifying the systems, the attackers can attempt to exploit them directly, often bypassing other security controls including Web Application Firewalls (WAFs). We'll return to these additional attacks including WAF bypass later in the course.
Bonus (If Time Permits or Homework)
Masscan Rate Experimentation
Re-run the Masscan scan, adjusting the rate to higher values (such as --rate 100000 or higher). Repeat each scan multiple times. What is the maximum rate your system can accommodate to get reliably consistent results from Masscan? (This value will vary from system to system.)
Falsimentis Host Assessment
Visit the newly identified Falsimentis target system at https://10.200.74.2. We know this server is ostensibly named downloads.falsimentis.com from the certificate information, even though it is not present in DNS records. Spend a few minutes evaluating the server and answer several questions.
Question: What is the hidden directory specified in the robots exclusion file?
Click to See Hint
The robots exclusion file isrobots.txt, available in the root of the web
server. You can download this file to examine the contents using Firefox, or at
the command line using wget or curl (with the -k option), as shown here.
sec504@slingshot:~$ curl -k https://10.200.74.2/robots.txt
Click to See Answer
sec504@slingshot:~$ curl -k https://10.200.74.2/robots.txt # Don't allow search engine crawlers to discover hidden directory User-Agent: * Disallow: /918cd9e790b13972faa1034157a11982
Answer: The directory named 918cd9e790b13972faa1034157a11982 is hidden from search engine robots in the robots exclusion file.
Question: What file is disclosed in the Falsimentis download server in the hidden directory?
Click to See Hint
We know that the robots exclusion file is designed to prevent search engines from crawling the web server for the designated directory. Browse to that directory using Firefox orcurl to see the contents of that directory.
Click to See Answer
Therobots.txt file identified the directory
918cd9e790b13972faa1034157a11982 on the web server, as shown here:sec504@slingshot:~$ curl -k https://10.200.74.2/robots.txt # Don't allow search engine crawlers to discover hidden directory User-Agent: * Disallow: /918cd9e790b13972faa1034157a11982
Since we know the site is trying to prevent web crawlers from accessing this directory, this directory might have interesting content. Request the contents of the directory to see the file list using Firefox or curl, as shown here (note that a trailing / at the end of the URL is required to obtain the directory contents).
sec504@slingshot:~$ curl -k https://10.200.74.2/918cd9e790b13972faa1034157a11982 <head><title>301 Moved Permanently</title></head> <body> <center><h1>301 Moved Permanently</h1></center> <hr><center>nginx/1.18.0</center> </body> </html> sec504@slingshot:~$ curl -k https://10.200.74.2/918cd9e790b13972faa1034157a11982/ <html> <head><title>Index of /918cd9e790b13972faa1034157a11982/</title></head> <body> <h1>Index of /918cd9e790b13972faa1034157a11982/</h1><hr><pre><a href="../">../</a> <a href="Falsimentis%20Board%20Meeting%20Minutes%204Q.docx">Falsimentis Board Meeting Minutes 4Q.docx</a> 18-Apr-2021 13:14 32476 <a href="Falsimentis%20Board%20Meeting%20Minutes%204Q.pdf">Falsimentis Board Meeting Minutes 4Q.pdf</a> 18-Apr-2021 13:14 28874 </pre><hr></body> </html>
Answer: Two files are disclosed in the Falsimentis download server in the hidden directory: Falsimentis Board Meeting Minutes for Q4.pdf and Falsimentis Board Meeting Minutes for Q4.docx
Question: Download the identified files. Use the Metadata in the files to identify the author, editor, application used to compose the document, and document producer.
Click to See Hint
Use Firefox to download the two files from the Falsimentis download server hidden directory. You may optionally wish to examine the document content by opening the PDF using Firefox.From a terminal, change to the Downloads directory. Examine the metadata associated with both the PDF and DOCX files using exiftool.
Click to See Answer
After downloading the files, change to theDownloads directory and use exiftool to examine
the document metadata, as shown here.
sec504@slingshot:~$ cd Downloads/
sec504@slingshot:~/Downloads$ ls
'Falsimentis Board Meeting Minutes 4Q.docx'
'Falsimentis Board Meeting Minutes 4Q.pdf'
sec504@slingshot:~/Downloads$ exiftool *.docx *.pdf
======== Falsimentis Board Meeting Minutes 4Q.docx
ExifTool Version Number : 10.80
File Name : Falsimentis Board Meeting Minutes 4Q.docx
Directory : .
...
2 image files read
Inspect the output from exiftool to identify the author, editor, application, and document producer. Optionally you can use grep to match these fields in the output of exiftool, as shown here.
sec504@slingshot:~/Downloads$ exiftool *.docx *.pdf | grep -i -E "author|editor|application|producer" MIME Type : application/vnd.openxmlformats-officedocument.wordprocessingml.document Application : Microsoft Office Word Editor : Roseann Bycraft MIME Type : application/pdf Producer : macOS Version 11.2.3 (Build 20D91) Quartz PDFContext Author : Florina Schleicher
The grep command line can be broken down into the following components:
-i: Perform case-insensitive matching-E: Treat the search term as a regular expression (regex)"author|editor|application|producer": Match any lines matching the regular expression where|denotes an or condition (display lines containing any of the specified strings)
Answer: Florina Schieicher (author), Roseann/Rose Bycraft (editor), Microsoft Office word (application used to compose the document), macOS 11.2.3 (document producer).
Video Walkthrough
Watch the accompanying video instructions for additional information.
Additional Resources
Additional information on Masscan is available in the project page at https://github.com/robertdavidgraham/masscan.
Much of this lab is inspired by the excellent article How To Scan AWS's Entire IP Range to Recon SSL Certificates by Daehee Park at https://www.daehee.com/scan-aws-ip-ssl-certificates/.
